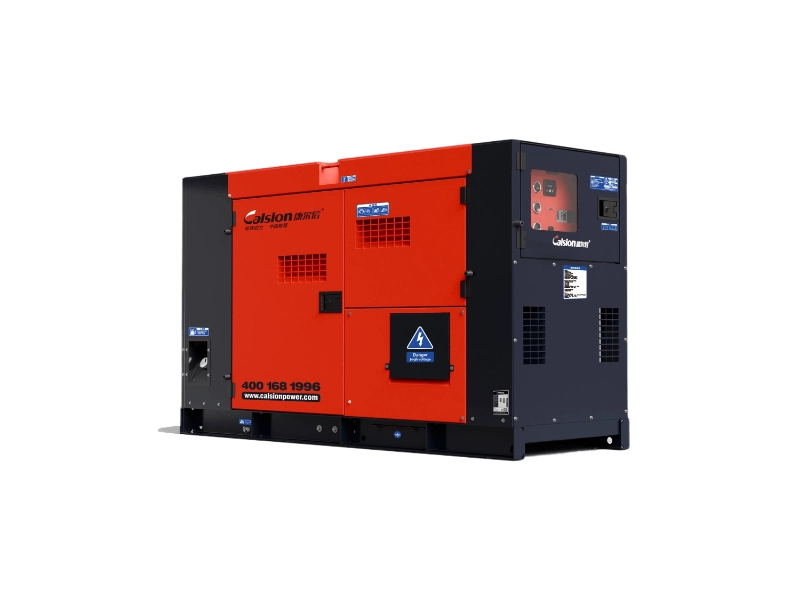

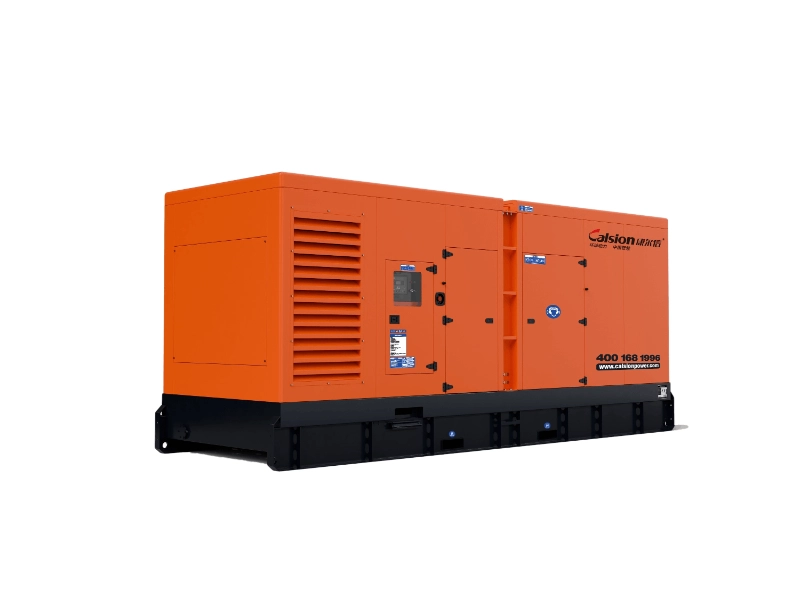

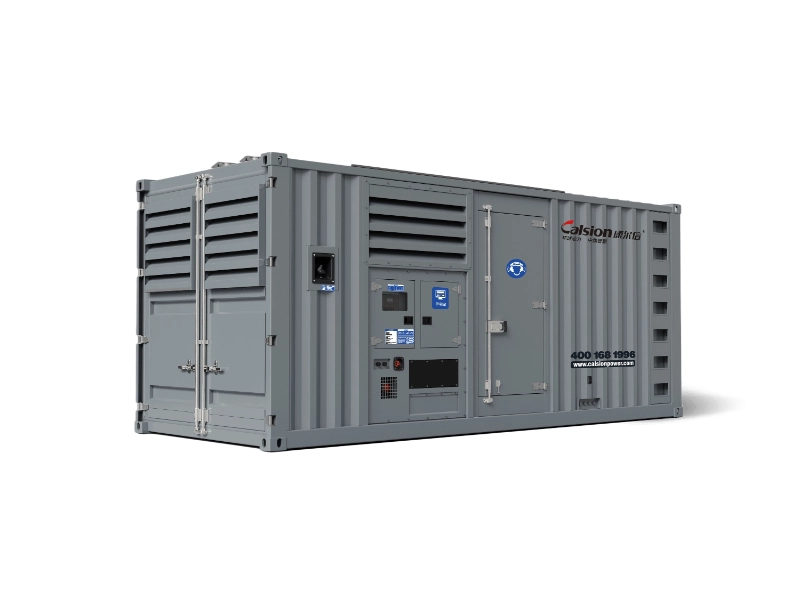

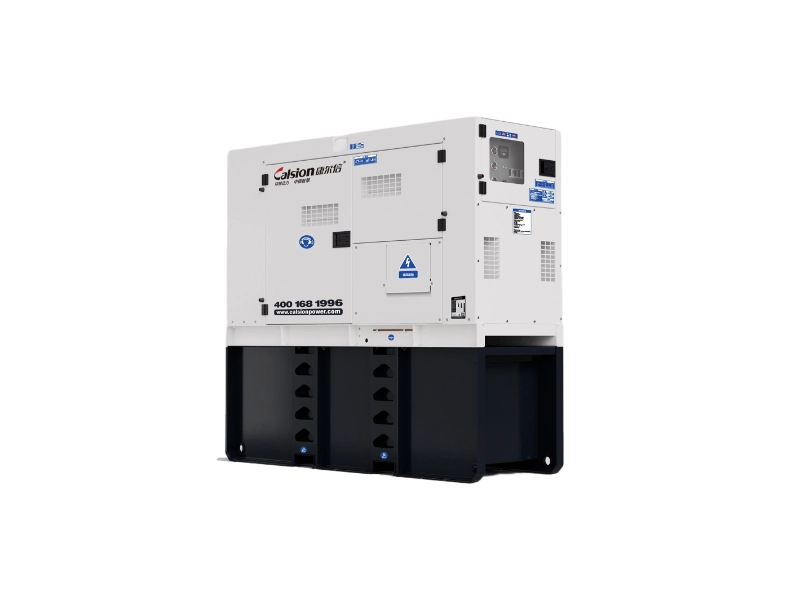

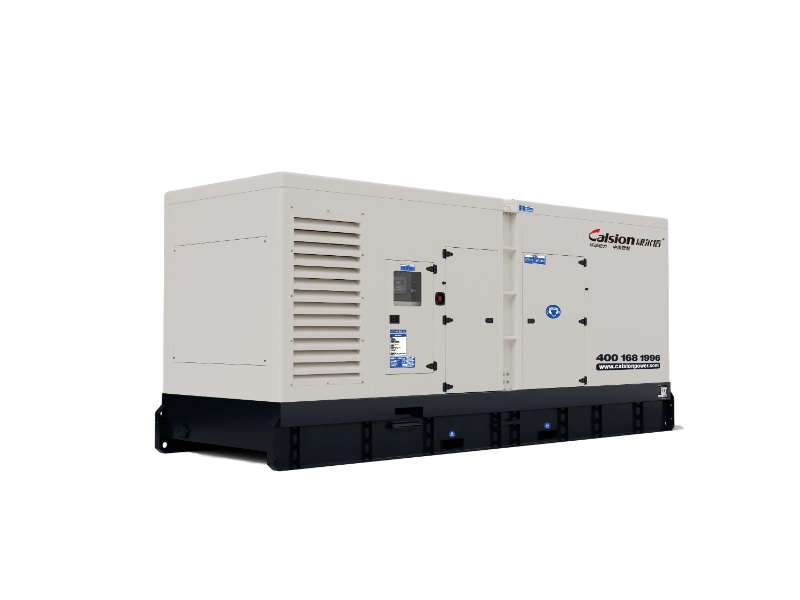

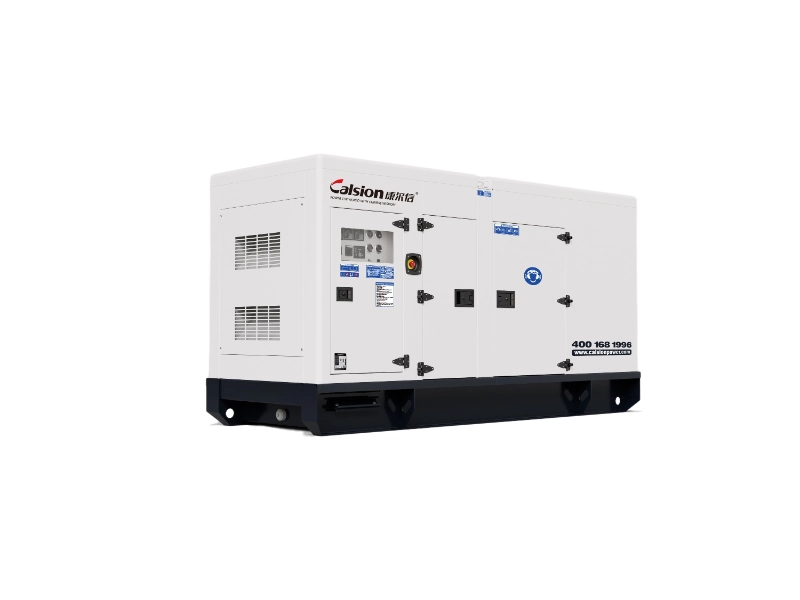

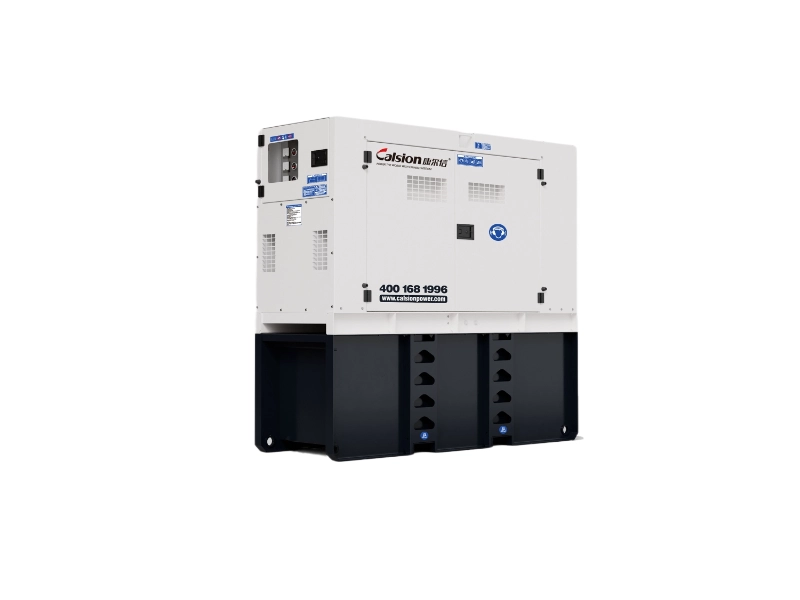

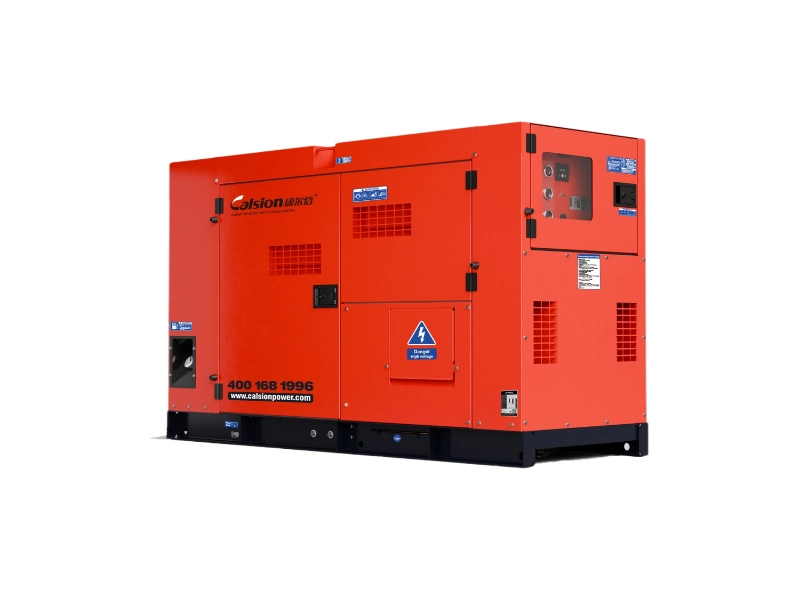

    Silent Diesel Generator Sets with yuchai Engines
    Silent Diesel Generator Sets with yuchai Engines

    Silent Diesel Generator Sets with Yuchai Engines

    Product Introduction

    Frequency：50 Hz / 60 Hz
    Prime Range：20-3750 kVA / 16-3000 kW
    Standby Range：23-4125 kVA / 18-3300 kW
    Fuel Type：Diesel
    Speed：1500 / 1800 RPM
    Engine Manufacturer：YUCHAI
    Inquire Now
    WhatsApp

    Share :

    Product Features

    • 01

      Multi-Layer Protective Structure Design

      Features a composite structure combining an outer casing with a flame-retardant noise-reduction layer, balancing structural strength with noise reduction while providing multi-layered protection against rain, dust, snow, and salt spray corrosion.

    • 02

      Wide Temperature Range Stability

      Operates reliably between -20°C and +45°C, adapting to demanding outdoor, coastal, and high-altitude environments while meeting noise-sensitive requirements in hospitals and residential areas.

    • 03

      Convenient Maintenance Design

      Access doors on the side/rear of the enclosure provide ample internal maintenance space. Core components like the engine, generator, and control cabinet can be directly accessed without disassembling the enclosure, significantly improving operational efficiency.

    • 04

      Comprehensive Safety Protection Configuration

      Integrated insulation, heating, and dehumidification systems enable stable operation across a wide temperature range of -40°C to +55°C. Surfaces feature anti-salt spray and anti-sandstorm coating technology, making it suitable for harsh environments such as coastal areas, deserts, and plateaus.
    • Detailed description
    • 50HZ Product Model List
    • 60HZ Product Model List
    • Download

    Applicable Scenarios

    1. backup power supply

    Small to medium-sized commercial buildings (shopping malls, hotels), hospitals, data centers

    2. low noise requirements

    Residential area perimeter projects, outdoor weddings, temporary events

    3. mobile/temporary power supply

    Small factories, farms, base stations

    Exhibition

    After-sales Service

    Purchasing Calsion products comes with abundant benefits.

    We not only offer reliable and excellent products, but also comprehensive service support. We are committed to offering best service and maintenance to our customers.

    • Maintenance and repair services
    • Genuine Spare Parts Supply
    • Emergency Repair Services
    • Upgrading and reconstruction
    • Technical consultation and regular training programs

    FAQs

    • What types of emergency power products and solutions do you offer?

      We offer a full range of emergency power products and integrated solutions, including generators, medium-voltage UPS, and hybrid energy systems. Our offerings cover both basic and advanced power needs, with flexible configurations — available in open, soundproof enclosure, and containerized types — to adapt to diverse application scenarios.

    • Do you provide customized solutions for emergency power needs?

      Yes, we specialize in customized emergency power solutions. Based on your application scenarios, power requirements, and on-site conditions, we tailor the solution design, product configuration, and functional settings to ensure precise alignment with your actual needs.

    • What after-sales support services do you provide for your emergency power products and solutions?

      We provide comprehensive after-sales support, including installation guidance, routine maintenance consultation, and technical assistance for fault handling. Service packages can be tailored based on your project requirements to ensure reliable long-term operation.

    • Which industry sectors are your emergency power products and solutions suitable for?

      Our emergency power solutions are widely used in industries that demand stable and reliable backup power. We have proven expertise in high-end sectors such as semiconductor manufacturing, data centers and skyscrapers. Our solutions can be adapted to meet the operational characteristics and power standards of various critical applications.

    Model

    		 Prime power
         		 Standby power
    Engine model    		 Engine model
         		 Speed regulation mode
         		 Dimension
    Open type    		 Dimension
    Silent type    		 Trailer

     KVA  KW  KVA  KW mm mm
    C20YC6S
    CE23YC6S    		 20 16 23 18 YC4V35-D21 Mechanical/Electronic 1350*600*980 2500*1000*1550 Optional
    C20YC6S
    CE23YC6S    		 20 16 23 18 YCDA2530-D42 Electronic 1350*600*980 2500*1000*1550 Optional
    C25YC6S
    CE28YC6S    		 25 20 28 22 YCDA2540-D42 Electronic 1350*600*980 2500*1000*1550 Optional
    C30YC6S
    CE33YC6S    		 30 24 33 26 YC4V45Z-D21 Mechanical/Electronic 1560*600*1160 2850*1100*1650 Optional
    C30YC6S
    CE33YC6S    		 30 24 33 26 YCDA2545-D42 Electronic 1560*600*1160 1560*600*1160 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YC4V55Z-D21 Mechanical/Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YCDA2555-D42 Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YC4D65-D20 Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YCD4.2N65-G21 Electronic 1720*600*1260 2950*1150*1750 Optional
    C56YC6S
    CE63YC6S    		 56 45 63 50 YC4D80Z-D20 Electronic 1800*745*1350 3250*1200*1850 Optional
    C56YC6S
    CE63YC6S    		 56 45 63 50 YCD4.2T80-G21 Electronic 1800*745*1350 3250*1200*1850 Optional
    C63YC6S
    CE69YC6S    		 63 50 69 55 YCD4.2T100-G21 Electronic 1800*745*1350 3650*1200*1900 Optional
    C68YC6S
    CE75YC6S    		 68 54 75 60 YC4D100Z-D20 Electronic 1800*745*1350 3650*1200*1900 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YC4D140-D33 Electronic 2000*750*1140 3850*1200*2000 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YC6SB130Z-D20 Electronic 2000*750*1140 3850*1200*2000 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YCB6.9T130-G21 Electronic 2000*750*1140 3850*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YC4D155-D33 Electronic 2000*750*1140 3950*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YC6SB160Z-D20 Electronic 2000*750*1140 3950*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YCB6.9T160-G21 Electronic 2000*750*1140 3950*1200*2000 Optional
    C125YC6S
    CE138YC6S    		 125 100 138 110 YC4D180-D33 Electronic 2080*750*1140 4000*1200*2000 Optional
    C125YC6S
    CE138YC6S    		 125 100 138 110 YCA05190-D42 Electronic 2130*750*1140 4150*1200*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YC6SB210L-D20 Electronic 2280*960*1350 4250*1250*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YCB6.9TAA210-G21 Electronic 2280*960*1350 4250*1250*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YC4A205-D32 Electronic 2280*960*1350 4250*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 180 144 200 160 YC6SA245L-D20 Electronic 2450*960*1350 4450*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 180 144 200 160 YCA7.3TAA245-G21 Electronic 2450*960*1350 4450*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 188 150 200 160 YC6SA245-D32 Electronic 2450*960*1350 4450*1250*2000 Optional
    C200YC6S
    CE225YC6S    		 200 160 225 180 YC6SA285-D32 Electronic 2680*980*1350 4850*1440*2550 Optional
    C200YC6S
    CE225YC6S    		 200 160 225 180 YCMK10TAA285-G21 Electronic 2680*980*1350 4850*1440*2550 Optional
    C225YC6S
    CE250YC6S    		 225 180 250 200 YC6SA305-D32 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YC6SMK360-D30 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YC6SMK360L-D20 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YCMK10TAA360-G21 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C306YC6S
    CE338YC6S    		 306 245 338 270 YC6SMK420-D31 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C313YC6S
    CE344YC6S    		 313 250 344 275 YC6SMK420L-D21 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C313YC6S
    CE344YC6S    		 313 250 344 275 YCMK10TAA420-G21 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C375YC6S
    CE413YC6S    		 375 300 413 330 YC6SMK500-D32 Electronic 3115*1140*1610 5200*1700*2550 -
    C375YC6S
    CE413YC6S    		 375 300 413 330 YC6SMJ515L-D22 Electronic 3085*1140*1610 5200*1700*2550 -
    C375YC6S
    CE413YC6S    		 375 300 413 330 YCMJ12TAA515-G21 Electronic 3085*1140*1610 5200*1700*2550 -
    C400YC6S
    CE438YC6S    		 400 320 438 350 YCT16TAA550-G21 Electronic 3130*1140*1650 5350*1800*2550 -
    C450YC6S
    CE500YC6S    		 450 360 500 400 YCT16TAA600-G21 Electronic 3145*1140*1730 5550*1800*2550 -
    C500YC6S
    CE550YC6S    		 500 400 550 440 YC6ST660L-D21 Electronic 3410*1340*1880 5650*1800*2550 -
    C500YC6S
    CE550YC6S    		 500 400 550 440 YCT16TAA660-G21 Electronic 3410*1340*1880 5650*1800*2550 -
    C563YC6S
    CE625YC6S    		 563 450 625 500 YC6STD780-D32 Electronic 3450*1560*1900 5750*1900*2550 -
    C625YC6S
    CE688YC6S    		 625 500 688 550 YC6STD840-D32 Electronic 3580*1560*1960 5800*1900*2550 -
    C625YC6S
    CE688YC6S    		 625 500 688 550 YC6STD840-D31 Electronic 3580*1560*1960 5800*1900*2550 -
    C688YC6S
    CE750YC6S    		 688 550 750 600 YC6STD940-D32 Electronic 3580*1560*1960 5800*1900*2550 -
    C750YC6S
    CE825YC6S    		 750 600 825 660 YC6STD1020-D32 Electronic 3720*1560*1960 ISO 20'ft GP -
    C813YC6S
    CE888YC6S    		 813 650 888 710 YC6STH1070-D33 Electronic 3910*1750*2050 ISO 20'ft GP -
    C913YC6S
    CE1000YC6S    		 913 730 1000 800 YC6STH1220-D33 Electronic 4100*1750*2140 ISO 20'ft GP -
    C1000YC6S
    CE1125YC6S    		 1000 800 1125 900 YC6STH1350-D33 Electronic 4100*1750*2140 ISO 20'ft GP -
    C1000YC6S
    CE1100YC6S    		 1000 800 1100 880 YC12VTD1350-D32 Electronic 4460*1780*2430 ISO 20'ft HQ -
    C1125YC6S
    CE1375YC6S    		 1125 900 1375 990 YC12VTD1500-D32 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1250YC6S
    CE1375YC6S    		 1250 1000 1375 1100 YC12VTD1680-D32 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1250YC6S
    CE1375YC6S    		 1250 1000 1375 1100 YC12VTD1680-D33 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1375YC6S
    CE1500YC6S    		 1375 1100 1500 1200 YC12VTD1860-D33 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1375YC6S
    CE1500YC6S    		 1375 1100 1500 1200 YC12VTD1860-D32 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1500YC6S
    CE1650YC6S    		 1500 1200 1650 1320 YC12VTD2070-D33 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1500YC6S
    CE1650YC6S    		 1500 1200 1650 1320 YC12VTD2070-D32 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1688YC6S
    CE1875YC6S    		 1688 1350 1875 1500 YC16VTD2270-D32 Electronic 5220*2200*2680 ISO 40'ft HQ -
    C1875YC6S
    CE2063YC6S    		 1875 1500 2063 1650 YC16VTD2510-D32 Electronic 5230*2300*2700 ISO 40'ft HQ -
    C2000YC6S
    CE2250YC6S    		 2000 1600 2250 1800 YC16VTD2700-D32 Electronic 6260*2300*2745 ISO 40'ft HQ -
    C2250YC6S
    CE2500YC6S    		 2250 1800 2500 2000 YC20VTD3000-D32 Electronic 6580*2420*2945 ISO 40'ft HQ -
    C2500YC6S
    CE2750YC6S    		 2500 2000 2750 2200 YC20VTD3300-D32 Electronic 6750*2540*3211 ISO 40'ft HQ -

    Model

    		 Prime power
         		 Standby power
    Engine model    		 Engine model
         		 Speed regulation mode
         		 Dimension
    Open type    		 Dimension
    Silent type    		 Trailer

     KVA  KW  KVA  KW mm mm
    C20YC6S
    CE23YC6S    		 20 16 23 18 YC4V35-D21 Mechanical/Electronic 1350*600*980 2500*1000*1550 Optional
    C20YC6S
    CE23YC6S    		 20 16 23 18 YCDA2530-D42 Electronic 1350*600*980 2500*1000*1550 Optional
    C25YC6S
    CE28YC6S    		 25 20 28 22 YCDA2540-D42 Electronic 1350*600*980 2500*1000*1550 Optional
    C30YC6S
    CE33YC6S    		 30 24 33 26 YC4V45Z-D21 Mechanical/Electronic 1560*600*1160 2850*1100*1650 Optional
    C30YC6S
    CE33YC6S    		 30 24 33 26 YCDA2545-D42 Electronic 1560*600*1160 1560*600*1160 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YC4V55Z-D21 Mechanical/Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YCDA2555-D42 Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YC4D65-D20 Electronic 1650*600*1260 2880*1100*1750 Optional
    C38YC6S
    CE41YC6S    		 38 30 41 33 YCD4.2N65-G21 Electronic 1720*600*1260 2950*1150*1750 Optional
    C56YC6S
    CE63YC6S    		 56 45 63 50 YC4D80Z-D20 Electronic 1800*745*1350 3250*1200*1850 Optional
    C56YC6S
    CE63YC6S    		 56 45 63 50 YCD4.2T80-G21 Electronic 1800*745*1350 3250*1200*1850 Optional
    C63YC6S
    CE69YC6S    		 63 50 69 55 YCD4.2T100-G21 Electronic 1800*745*1350 3650*1200*1900 Optional
    C68YC6S
    CE75YC6S    		 68 54 75 60 YC4D100Z-D20 Electronic 1800*745*1350 3650*1200*1900 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YC4D140-D33 Electronic 2000*750*1140 3850*1200*2000 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YC6SB130Z-D20 Electronic 2000*750*1140 3850*1200*2000 Optional
    C100YC6S
    CE110YC6S    		 100 80 110 88 YCB6.9T130-G21 Electronic 2000*750*1140 3850*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YC4D155-D33 Electronic 2000*750*1140 3950*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YC6SB160Z-D20 Electronic 2000*750*1140 3950*1200*2000 Optional
    C113YC6S
    CE125YC6S    		 113 90 125 100 YCB6.9T160-G21 Electronic 2000*750*1140 3950*1200*2000 Optional
    C125YC6S
    CE138YC6S    		 125 100 138 110 YC4D180-D33 Electronic 2080*750*1140 4000*1200*2000 Optional
    C125YC6S
    CE138YC6S    		 125 100 138 110 YCA05190-D42 Electronic 2130*750*1140 4150*1200*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YC6SB210L-D20 Electronic 2280*960*1350 4250*1250*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YCB6.9TAA210-G21 Electronic 2280*960*1350 4250*1250*2000 Optional
    C150YC6S
    CE165YC6S    		 150 120 165 132 YC4A205-D32 Electronic 2280*960*1350 4250*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 180 144 200 160 YC6SA245L-D20 Electronic 2450*960*1350 4450*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 180 144 200 160 YCA7.3TAA245-G21 Electronic 2450*960*1350 4450*1250*2000 Optional
    C180YC6S
    CE200YC6S    		 188 150 200 160 YC6SA245-D32 Electronic 2450*960*1350 4450*1250*2000 Optional
    C200YC6S
    CE225YC6S    		 200 160 225 180 YC6SA285-D32 Electronic 2680*980*1350 4850*1440*2550 Optional
    C200YC6S
    CE225YC6S    		 200 160 225 180 YCMK10TAA285-G21 Electronic 2680*980*1350 4850*1440*2550 Optional
    C225YC6S
    CE250YC6S    		 225 180 250 200 YC6SA305-D32 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YC6SMK360-D30 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YC6SMK360L-D20 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C250YC6S
    CE275YC6S    		 250 200 275 220 YCMK10TAA360-G21 Electronic 2730*1030*1540 4850*1440*2550 Optional
    C306YC6S
    CE338YC6S    		 306 245 338 270 YC6SMK420-D31 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C313YC6S
    CE344YC6S    		 313 250 344 275 YC6SMK420L-D21 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C313YC6S
    CE344YC6S    		 313 250 344 275 YCMK10TAA420-G21 Electronic 2830*1140*1560 4950*1700*2550 Optional
    C375YC6S
    CE413YC6S    		 375 300 413 330 YC6SMK500-D32 Electronic 3115*1140*1610 5200*1700*2550 -
    C375YC6S
    CE413YC6S    		 375 300 413 330 YC6SMJ515L-D22 Electronic 3085*1140*1610 5200*1700*2550 -
    C375YC6S
    CE413YC6S    		 375 300 413 330 YCMJ12TAA515-G21 Electronic 3085*1140*1610 5200*1700*2550 -
    C400YC6S
    CE438YC6S    		 400 320 438 350 YCT16TAA550-G21 Electronic 3130*1140*1650 5350*1800*2550 -
    C450YC6S
    CE500YC6S    		 450 360 500 400 YCT16TAA600-G21 Electronic 3145*1140*1730 5550*1800*2550 -
    C500YC6S
    CE550YC6S    		 500 400 550 440 YC6ST660L-D21 Electronic 3410*1340*1880 5650*1800*2550 -
    C500YC6S
    CE550YC6S    		 500 400 550 440 YCT16TAA660-G21 Electronic 3410*1340*1880 5650*1800*2550 -
    C563YC6S
    CE625YC6S    		 563 450 625 500 YC6STD780-D32 Electronic 3450*1560*1900 5750*1900*2550 -
    C625YC6S
    CE688YC6S    		 625 500 688 550 YC6STD840-D32 Electronic 3580*1560*1960 5800*1900*2550 -
    C625YC6S
    CE688YC6S    		 625 500 688 550 YC6STD840-D31 Electronic 3580*1560*1960 5800*1900*2550 -
    C688YC6S
    CE750YC6S    		 688 550 750 600 YC6STD940-D32 Electronic 3580*1560*1960 5800*1900*2550 -
    C750YC6S
    CE825YC6S    		 750 600 825 660 YC6STD1020-D32 Electronic 3720*1560*1960 ISO 20'ft GP -
    C813YC6S
    CE888YC6S    		 813 650 888 710 YC6STH1070-D33 Electronic 3910*1750*2050 ISO 20'ft GP -
    C913YC6S
    CE1000YC6S    		 913 730 1000 800 YC6STH1220-D33 Electronic 4100*1750*2140 ISO 20'ft GP -
    C1000YC6S
    CE1125YC6S    		 1000 800 1125 900 YC6STH1350-D33 Electronic 4100*1750*2140 ISO 20'ft GP -
    C1000YC6S
    CE1100YC6S    		 1000 800 1100 880 YC12VTD1350-D32 Electronic 4460*1780*2430 ISO 20'ft HQ -
    C1125YC6S
    CE1375YC6S    		 1125 900 1375 990 YC12VTD1500-D32 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1250YC6S
    CE1375YC6S    		 1250 1000 1375 1100 YC12VTD1680-D32 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1250YC6S
    CE1375YC6S    		 1250 1000 1375 1100 YC12VTD1680-D33 Electronic 4860*2000*2430 ISO 20'ft HQ -
    C1375YC6S
    CE1500YC6S    		 1375 1100 1500 1200 YC12VTD1860-D33 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1375YC6S
    CE1500YC6S    		 1375 1100 1500 1200 YC12VTD1860-D32 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1500YC6S
    CE1650YC6S    		 1500 1200 1650 1320 YC12VTD2070-D33 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1500YC6S
    CE1650YC6S    		 1500 1200 1650 1320 YC12VTD2070-D32 Electronic 5160*2000*2430 ISO 40'ft HQ -
    C1688YC6S
    CE1875YC6S    		 1688 1350 1875 1500 YC16VTD2270-D32 Electronic 5220*2200*2680 ISO 40'ft HQ -
    C1875YC6S
    CE2063YC6S    		 1875 1500 2063 1650 YC16VTD2510-D32 Electronic 5230*2300*2700 ISO 40'ft HQ -
    C2000YC6S
    CE2250YC6S    		 2000 1600 2250 1800 YC16VTD2700-D32 Electronic 6260*2300*2745 ISO 40'ft HQ -
    C2250YC6S
    CE2500YC6S    		 2250 1800 2500 2000 YC20VTD3000-D32 Electronic 6580*2420*2945 ISO 40'ft HQ -
    C2500YC6S
    CE2750YC6S    		 2500 2000 2750 2200 YC20VTD3300-D32 Electronic 6750*2540*3211 ISO 40'ft HQ -

    Tags:

    containerized genset financial diesel gensets solution high voltage diesel generator Silent Diesel Generator Sets yuchai diesel generator sets yuchai diesel genset

    next:

    Diesel Generator Sets with Yuchai Engines

    Related Products

    We have developed a diverse portfolio of product solutions to suit different markets and needs.
