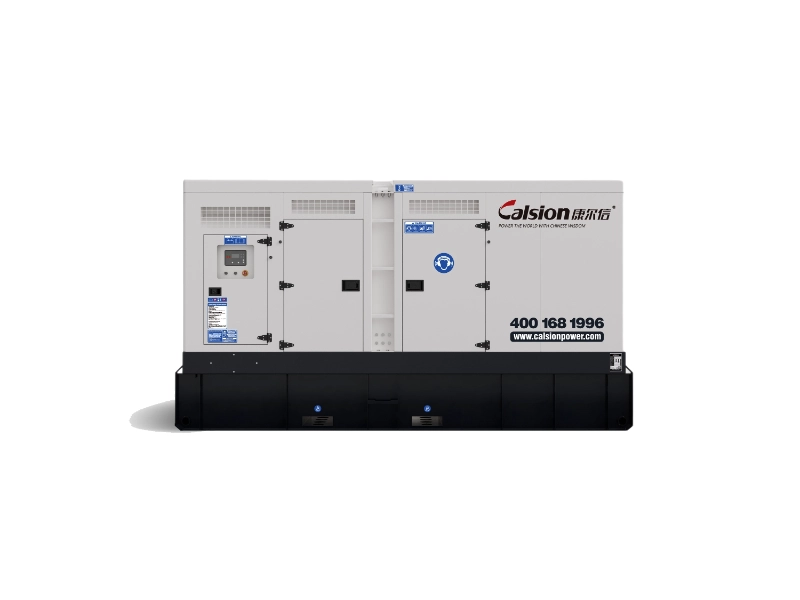

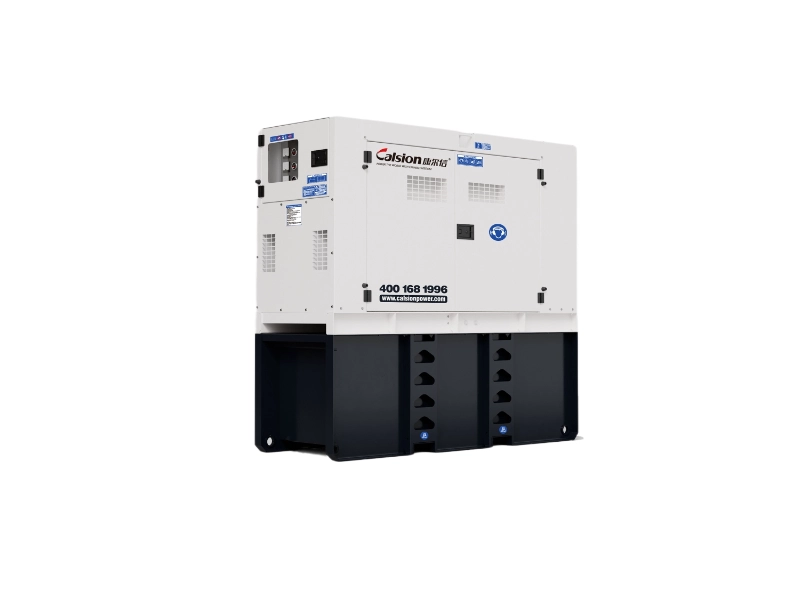

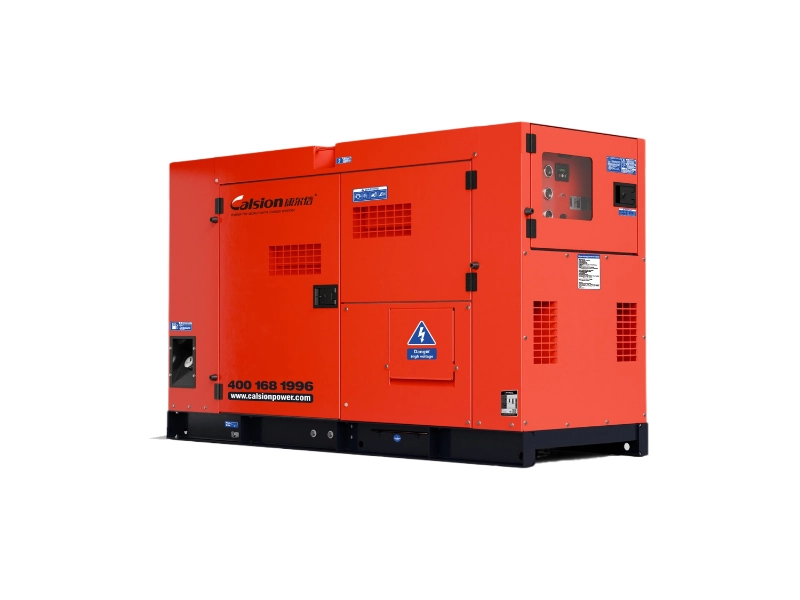

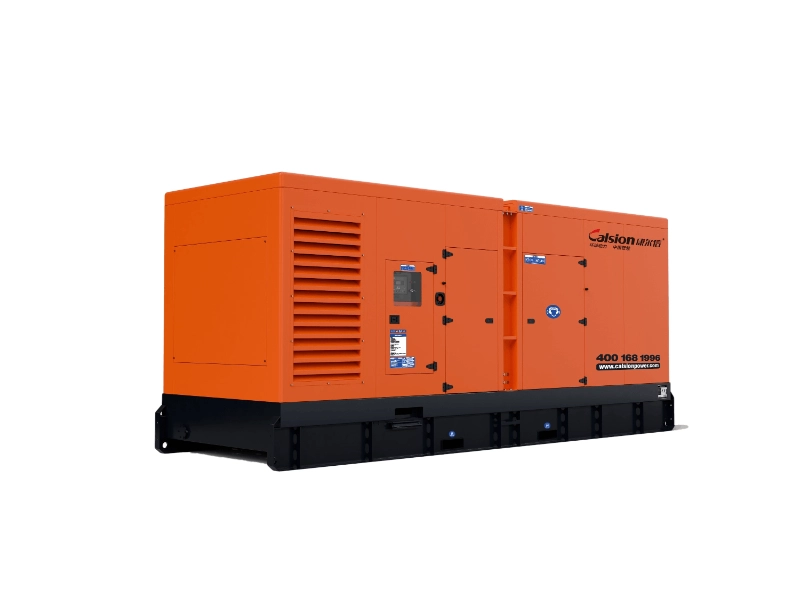

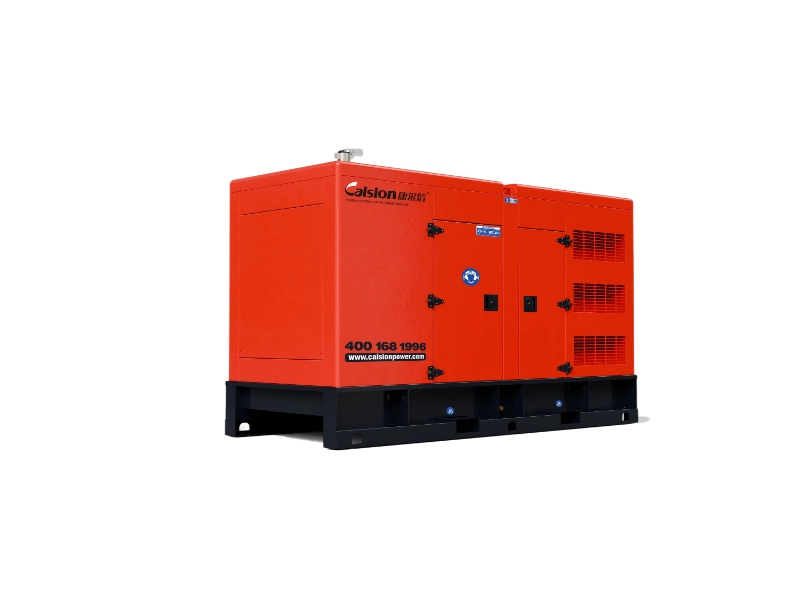

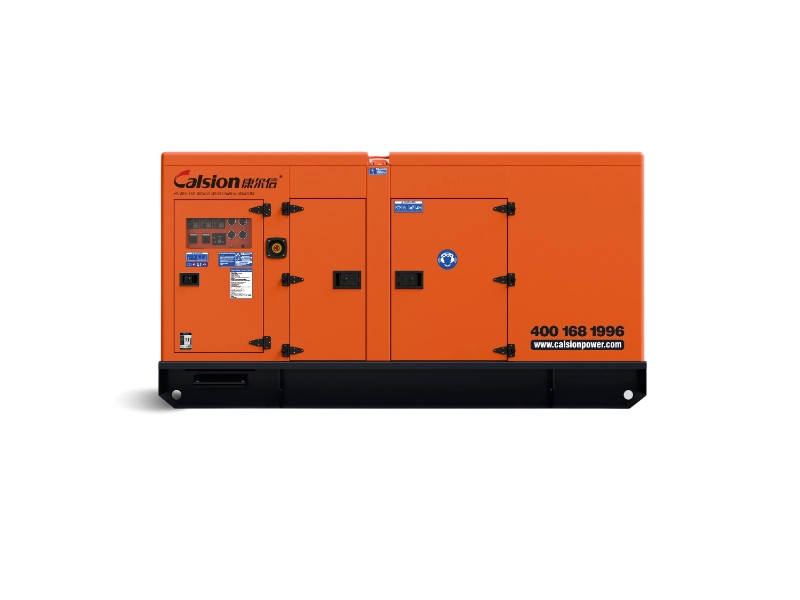

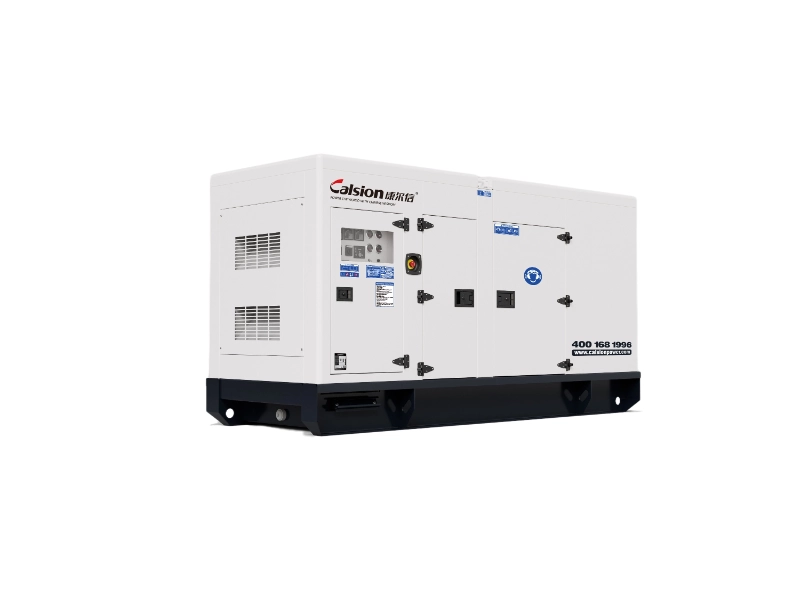

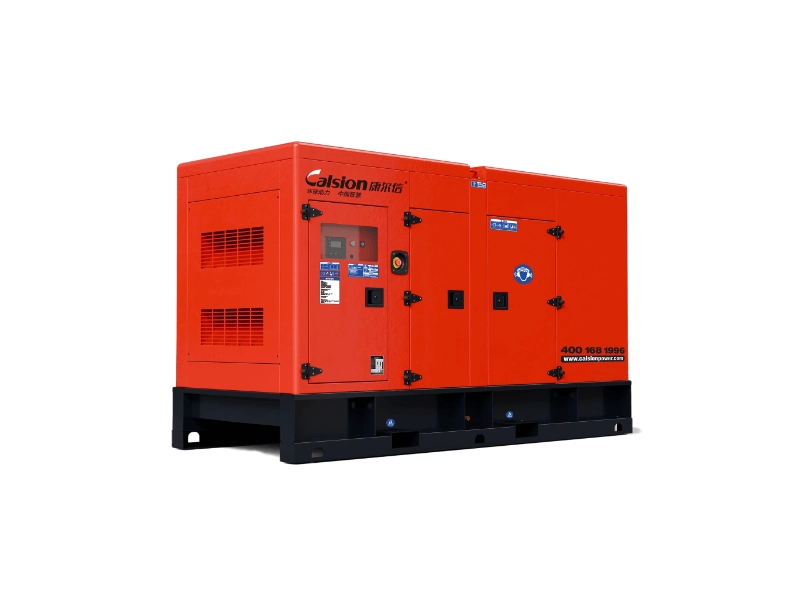

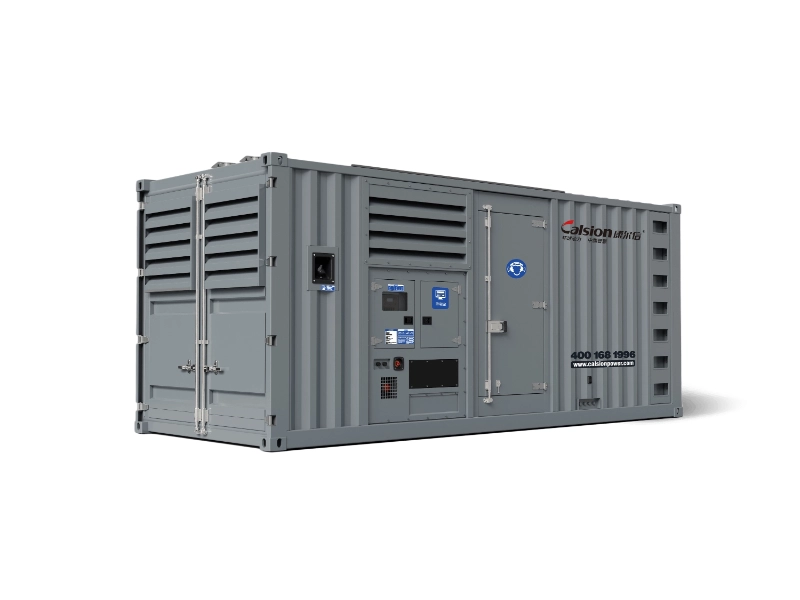

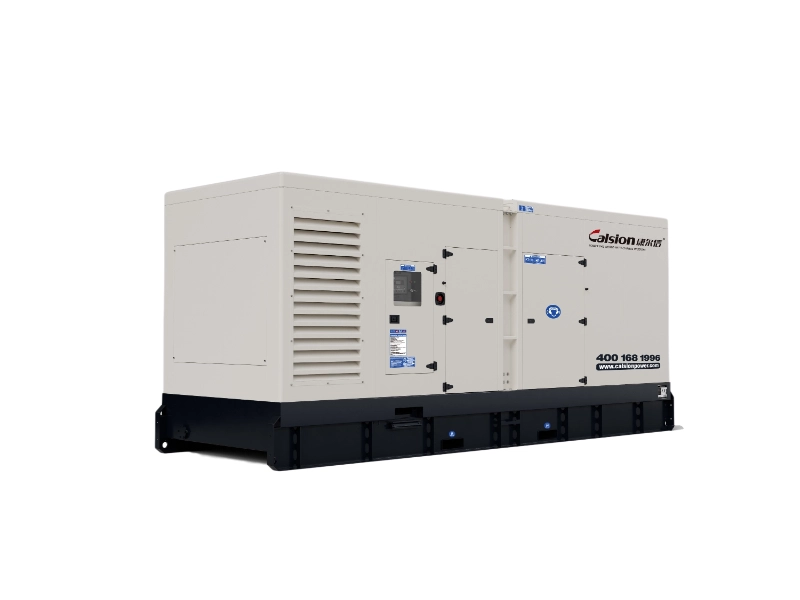

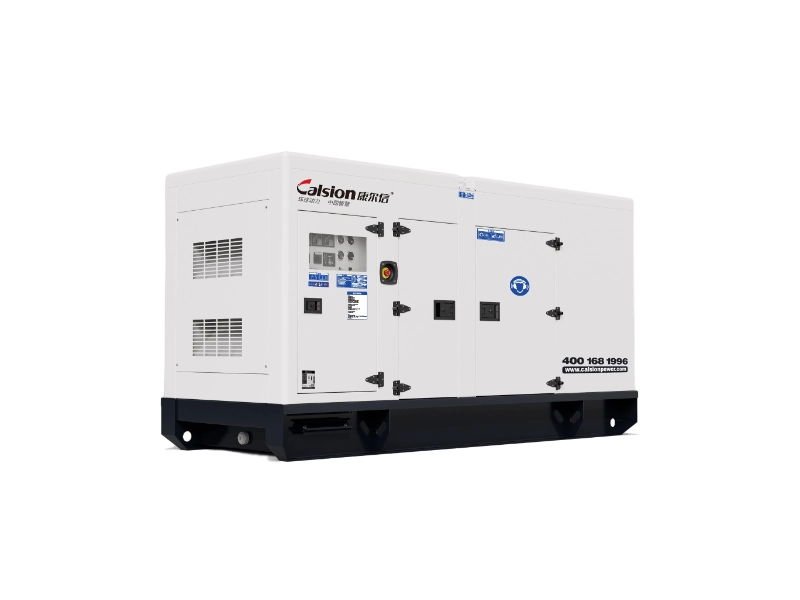

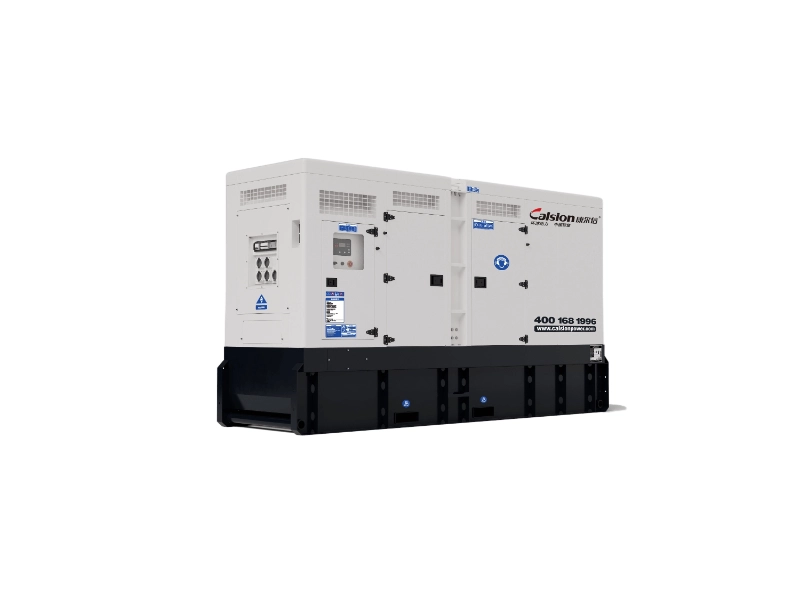

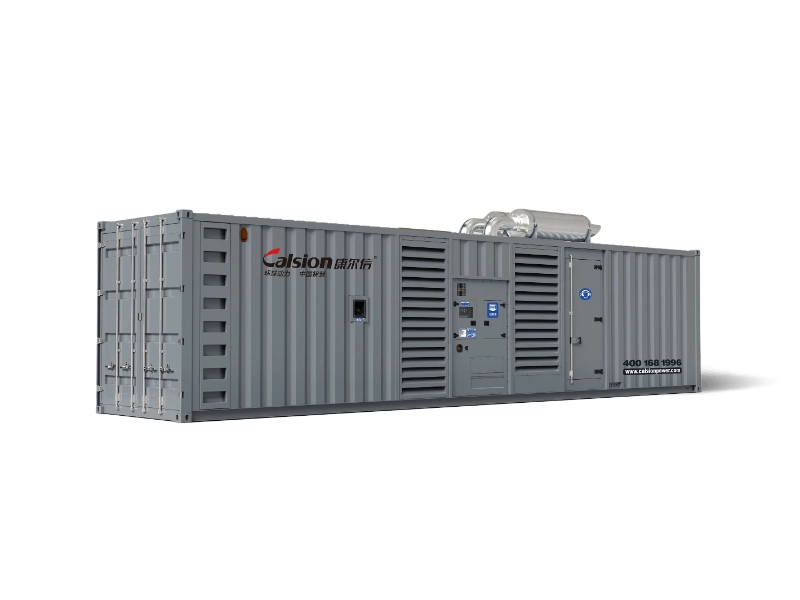

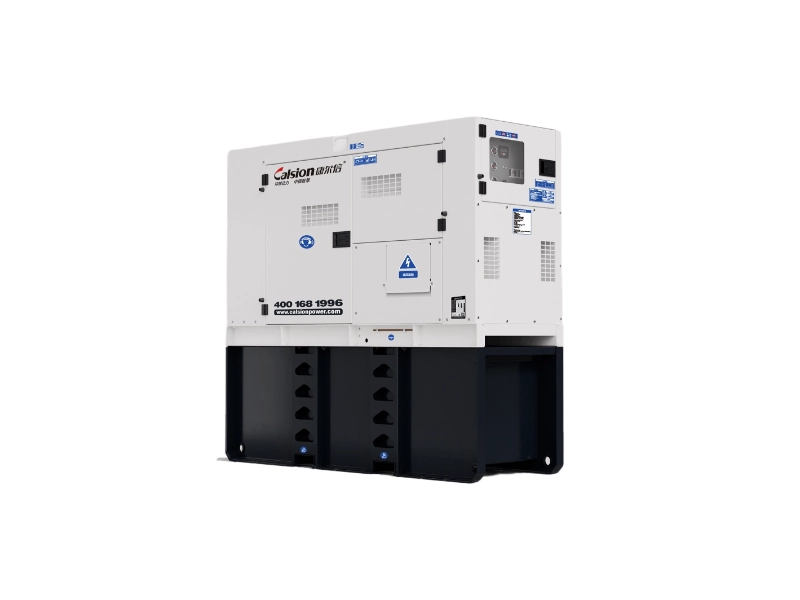

    Silent Diesel Generator Sets with perkins Engines
    Silent Diesel Generator Sets with perkins Engines
    Silent Diesel Generator Sets with perkins Engines
    Silent Diesel Generator Sets with perkins Engines

    Silent Diesel Generator Sets with Perkins Engines

    Product Introduction

    Frequency：50 Hz / 60 Hz
    Prime Range：9-2500 kVA / 7-2000 kW
    Standby Range：10-2500 kVA / 8-2000 kW
    Fuel Type：Diesel
    Speed：1500 / 1800 RPM
    Engine Manufacturer：PERKINS
    Inquire Now
    WhatsApp

    Share :

    Product Features

    • 01

      Multi-Layer Protective Structure Design

      Features a composite structure combining an outer casing with a flame-retardant noise-reduction layer, balancing structural strength with noise reduction while providing multi-layered protection against rain, dust, snow, and salt spray corrosion.

    • 02

      Wide Temperature Range Stability

      Operates reliably between -20°C and +45°C, adapting to demanding outdoor, coastal, and high-altitude environments while meeting noise-sensitive requirements in hospitals and residential areas.

    • 03

      Convenient Maintenance Design

      Access doors on the side/rear of the enclosure provide ample internal maintenance space. Core components like the engine, generator, and control cabinet can be directly accessed without disassembling the enclosure, significantly improving operational efficiency.

    • 04

      Comprehensive Safety Protection Configuration

      Integrated insulation, heating, and dehumidification systems enable stable operation across a wide temperature range of -40°C to +55°C. Surfaces feature anti-salt spray and anti-sandstorm coating technology, making it suitable for harsh environments such as coastal areas, deserts, and plateaus.
    • Detailed description
    • 50HZ Product Model List
    • 60HZ Product Model List
    • Download

    Applicable Scenarios

    1. backup power supply

    Small to medium-sized commercial buildings (shopping malls, hotels), hospitals, data centers

    2. low noise requirements

    Residential area perimeter projects, outdoor weddings, temporary events

    3. mobile/temporary power supply

    Small factories, farms, base stations

    Exhibition

    After-sales Service

    Purchasing Calsion products comes with abundant benefits.

    We not only offer reliable and excellent products, but also comprehensive service support. We are committed to offering best service and maintenance to our customers.

    • Maintenance and repair services
    • Genuine Spare Parts Supply
    • Emergency Repair Services
    • Upgrading and reconstruction
    • Technical consultation and regular training programs

    FAQs

    • What types of emergency power products and solutions do you offer?

      We offer a full range of emergency power products and integrated solutions, including generators, medium-voltage UPS, and hybrid energy systems. Our offerings cover both basic and advanced power needs, with flexible configurations — available in open, soundproof enclosure, and containerized types — to adapt to diverse application scenarios.

    • Do you provide customized solutions for emergency power needs?

      Yes, we specialize in customized emergency power solutions. Based on your application scenarios, power requirements, and on-site conditions, we tailor the solution design, product configuration, and functional settings to ensure precise alignment with your actual needs.

    • What after-sales support services do you provide for your emergency power products and solutions?

      We provide comprehensive after-sales support, including installation guidance, routine maintenance consultation, and technical assistance for fault handling. Service packages can be tailored based on your project requirements to ensure reliable long-term operation.

    • Which industry sectors are your emergency power products and solutions suitable for?

      Our emergency power solutions are widely used in industries that demand stable and reliable backup power. We have proven expertise in high-end sectors such as semiconductor manufacturing, data centers and skyscrapers. Our solutions can be adapted to meet the operational characteristics and power standards of various critical applications.

    Model

    		 Prime power Standby power
    Engine model    		 Engine model
         		 Speed regulation mode
         		 Dimension
    Open type    		 Dimension
    Silent type    		 Trailer

     KVA  KW  KVA  KW mm mm
    C9PS
    CE10PS    		 9 7 10 8 403D-11G Mechanical 1340*630*1030 2040*940*1222 Optional
    C13PS
    CE14PS    		 13 10 14 11 403D-15G Mechanical 1340*630*1030 2040*940*1222 Optional
    C15PS
    CE16PS    		 15 12 16 13 403A-15G2 Mechanical 1370*630*1030 2040*940*1222 Optional
    C20PS
    CE22PS    		 20 16 22 18 404D-22G Mechanical 1390*630*1030 2040*940*1222 Optional
    C27PS
    CE30PS    		 27 22 30 24 404D-22TG Electronic 1490*730*1030 2540*940*1522 Optional
    C30PS
    CE33PS    		 30 24 33 26 1103A-33G Mechanical 1460*750*1300 2540*1040*1522 Optional
    C45PS
    CE50PS    		 45 36 50 40 1103A-33TG1 Mechanical 1910*800*1330 2540*1040*1522 Optional
    C60PS
    CE66PS    		 60 48 66 52 1103A-33TG2 Mechanical 1810*800*1330 2820*1128*1460 Optional
    C60PS
    CE66PS    		 60 48 66 52 1104D-44TG2 Electronic 1810*800*1330 2820*1128*1460 Optional
    C65PS
    CE71PS    		 65 52 71 57 1104A-44TG1 Mechanical 2100*800*1360 2820*1128*1460 Optional
    C80PS
    CE88PS    		 80 64 88 70 1104D-E44TAG1 ECM 2100*800*1360 3440*1140*1822 Optional
    C80PS
    CE88PS    		 80 64 88 70 1104A-44TG2 Mechanical 2100*800*1360 3440*1140*1822 Optional
    C100PS
    CE110PS    		 100 80 110 88 1104D-E44TAG2 ECM 2200*900*1360 3440*1140*1822 Optional
    C100PS
    CE110PS    		 100 80 110 88 1104C-44TAG2 Electronic 2200*900*1360 3440*1140*1822 Optional
    C120PS
    CE132PS    		 120 96 132 105 1204J-E44TTAG2 Electronic 2200*900*1360 3440*1140*1822 Optional
    C135PS
    CE150PS    		 135 108 150 120 1106A-70TG1 Mechanical 2481*1004*1534 3436*1106*1968 Optional
    C147PS
    CE163PS    		 147 118 163 130 1106D-E70TAG2 ECM 2481*1004*1534 3436*1106*1968 Optional
    C150PS
    CE165PS    		 150 120 165 132 1106A-70TAG2 Mechanical 2481*1004*1534 3436*1106*1968 Optional
    C163PS
    CE180PS    		 163 130 180 144 1106D-E70TAG3 ECM 2481*1004*1534 3436*1106*1968 Optional
    C180PS
    CE200PS    		 180 144 200 160 1106A-70TAG3 Mechanical 2481*1004*1534 3436*1106*1968 Optional
    C188PS
    CE206PS    		 188 150 206 165 1106D-E70TAG4 ECM 2481*1004*1534 3436*1106*1968 Optional
    C200PS
    CE220PS    		 200 160 220 176 1206J-E70TTAG3 ECM 2830*1120*1660 3686*1256*2068 Optional
    C200PS
    CE220PS    		 200 160 220 176 1206J-E70TTAG4 ECM 2830*1120*1660 3686*1256*2068 Optional
    C200PS
    CE220PS    		 200 160 220 176 1206D-E70TTAG1 ECM 2830*1120*1660 3686*1256*2068 Optional
    C200PS
    CE220PS    		 200 160 220 176 1106A-70TAG4 Electronic 2481*1004*1534 3436*1106*1968 Optional
    C225PS
    CE250PS    		 225 180 250 200 1506A-E88TAG2 ECM 2741*1150*1804 4700*1700*2500 Optional
    C225PS
    CE250PS    		 225 180 250 200 1206D-E70TTAG2 ECM 2650*1150*1804 4700*1700*2500 Optional
    C250PS
    CE275PS    		 250 200 275 220 1206A-E70TTAG3 ECM 2650*1150*1804 4700*1700*2500 Optional
    C250PS
    CE275PS    		 250 200 275 220 1206D-E70TTAG3 ECM 2650*1150*1804 4700*1700*2500 Optional
    C250PS
    CE275PS    		 250 200 275 220 1506A-E88TAG3 ECM 2741*1150*1804 4700*1700*2500 Optional
    C313PS
    CE338PS    		 313 250 338 270 1506A-E88TAG5 ECM 2741*1150*1804 4700*1700*2500 Optional
    C350PS
    CE400PS    		 350 280 400 320 2206A-E13TAG5 ECM 2950*1352*1990 4700*1700*2500 Optional
    C350PS
    CE400PS    		 350 280 400 320 2206A-E13TAG6 ECM 2950*1352*1990 4700*1700*2500 Optional
    C350PS
    CE400PS    		 350 280 400 320 2206C-E13TAG2 ECM 2950*1352*1990 4700*1700*2500 Optional
    C400PS
    CE440PS    		 400 320 440 350 2206C-E13TAG3 ECM 3000*1352*1990 4700*1700*2500 Optional
    C410PS
    CE450PS    		 410 328 450 360 2406J-E13TAG3 ECM 3000*1352*1990 4700*1700*2500 Optional
    C450PS
    CE500PS    		 450 360 500 400 2506C-E15TAG1 ECM 3195*1352*1990 4786*1356*2537 Optional
    C500PS
    CE550PS    		 500 400 550 440 2506C-E15TAG2 ECM 3295*1352*1990 4786*1356*2537 Optional
    C500PS
    CE550PS    		 500 400 550 440 2506D-E15TAG2 ECM 3295*1352*1990 4786*1356*2537 Optional
    C550PS
    CE605PS    		 550 440 605 484 2806J-E18TAG1 ECM 3231*1522*2010 4900*1700*2538 -
    C600PS
    CE660PS    		 600 480 660 528 2806C-E18TAG1A ECM 3231*1522*2010 4900*1700*2538 -
    C660PS
    CE725PS    		 660 528 725 580 2806A-E18TAG2 ECM 3331*1522*2010 4900*1700*2538 -
    C700PS
    CE770PS    		 700 560 770 616 2806A-E18TTAG4 ECM 3431*1722*2010 5306*1566*2585 -
    C750PS
    CE825PS    		 750 600 825 660 2806A-E18TTAG5 ECM 3431*1722*2010 5306*1566*2585 -
    C734PS
    CE808PS    		 734 587 808 646 4006-23TAG2A Electronic 4100*1800*2400 5800*1800*2550 -
    C800PS
    CE880PS    		 800 640 880 704 4006-23TAG3A Electronic 4100*1800*2400 5800*1800*2550 -
    C910PS
    CE1000PS    		 910 728 1000 800 4008TAG1A Electronic 4960*2200*2315 ISO 20'ft GP  -
    C1000PS
    CE1100PS    		 1000 800 1100 880 4008TAG2 Electronic 4960*2200*2315 ISO 20'ft GP  -
    C1000PS
    CE1100PS    		 1000 800 1100 880 4008TAG2A Electronic 4960*2200*2315 ISO 20'ft GP  -
    C1125PS
    CE1250PS    		 1125 900 1250 1000 4008-30TAG3 Electronic 4960*2200*2315 ISO 20'ft GP  -
    C1250PS
    CE1375PS    		 1250 1000 1375 1100 4012-46TWG2A Electronic 5000*2200*2600 ISO 20'ft GP  -
    C1500PS
    CE1650PS    		 1500 1200 1650 1320 4012-46TAG2A Electronic 5000*2200*2600 ISO 20'ft GP  -
    C1725PS
    CE1888PS    		 1725 1380 1888 1510 4012-46TAG3A Electronic 5000*2300*2700 ISO 40'ft HQ -
    C1840PS
    CE2025PS    		 1840 1472 2025 1620 4016TAG1A Electronic 5600*2800*2800 ISO 40'ft HQ -
    C2000PS
    CE2250PS    		 2000 1600 2250 1800 4016TAG2A Electronic 5600*2800*2800 ISO 40'ft HQ -
    C2250PS
    CE2500PS    		 2250 1800 2500 2000 4016-61TRG3 Electronic 5900*3000*3300 ISO 40'ft HQ -
    C2500PS 2500 2000 / / 4016-61TRG3X Electronic 6400*3024*3280 ISO 40'ft HQ -

    Model

    		 Prime power
         		 Standby power
    Engine model    		 Engine model
         		 Speed regulation mode
         		 Dimension
    Open type    		 Dimension
    Silent type    		 Trailer

     KVA  KW  KVA  KW mm mm
    C11P6S
    CE12P6S    		 11 9 12 10 403D-11G Mechanical 1340*630*1030 2040*940*1222 Optional
    C11P6S
    CE12P6S    		 11 9 12 10 403F-11G Mechanical 1340*630*1030 2040*940*1222 Optional
    C17P6S
    CE18P6S    		 17 14 18 15 403A-15G2 Mechanical 1370*630*1030 2040*940*1222 Optional
    C15P6S
    CE16P6S    		 15 12 16 13 403D-15G Mechanical 1340*630*1030 2040*940*1222 Optional
    C23P6S
    CE25P6S    		 23 19 25 20 404D-22G Mechanical 1390*630*1030 2040*940*1222 Optional
    C32P6S
    CE35P6S    		 32 26 35 28 404D-22TG Electronic 1490*730*1030 2540*940*1522 Optional
    C75P6S
    CE82P6S    		 75 60 82 66 1104A-44TG1 Mechanical 2100*800*1360 2820*1128*1460 Optional
    C90P6S
    CE100P6S    		 90 72 100 80 1104A-44TG2 Mechanical 2100*800*1360 3440*1140*1822 Optional
    C112P6S
    CE125P6S    		 112 90 125 100 1104C-44TAG2 Electronic 2200*900*1360 3440*1140*1822 Optional
    C65P6S
    CE71P6S    		 65 52 71 57 1104D-44TG2 Electronic 1810*800*1330 2820*1128*1460 Optional
    C90P6S
    CE100P6S    		 90 72 100 80 1104D-E44TAG1 ECM 2100*800*1360 3440*1140*1822 Optional
    C112P6S
    CE125P6S    		 112 90 125 100 1104D-E44TAG2 ECM 2200*900*1360 3440*1140*1822 Optional
    CE70P6S / / 70 56 1104D-44TG1 Mechanical Optional
    C67P6S
    CE75P6S    		 67 54 75 60 1104D-E44TG1 ECM 2200*900*1360 3440*1140*1822 Optional
    C150P6S
    CE165P6S    		 150 120 165 132 1106A-70TG1 Mechanical 2230*1000*1494 3440*1140*1822 Optional
    C168P6S
    CE187P6S    		 168 135 187 150 1106A-70TAG2 Mechanical 2300*1000*1494 3440*1140*1822 Optional
    C187P6S
    CE206P6S    		 187 150 206 165 1106A-70TAG3 Mechanical 2400*1080*1582 3440*1140*1822 Optional
    C162P6S
    CE175P6S    		 162 130 175 140 1106D-E70TAG2 ECM 2300*1000*1494 3440*1140*1822 Optional
    C173P6S
    CE190P6S    		 173 139 190 152 1106D-E70TAG3 ECM 2300*1000*1494 3440*1140*1822 Optional
    C200P6S
    CE220P6S    		 200 160 220 176 1106D-E70TAG4 ECM 2400*1080*1582 3440*1140*1822 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1106D-E70TAG5 ECM 2400*1080*1582 3440*1140*1822 Optional
    C112P6S
    CE125P6S    		 112 90 125 100 1204J-E44TTAG2 ECM 2200*900*1360 3440*1140*1822 Optional
    C168P6S
    CE187P6S    		 168 135 187 150 1206F-E70TTAG3 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206F-E70TTAG4 ECM 2650*1150*1804 3686*1256*2068 Optional
    C168P6S
    CE187P6S    		 168 135 187 150 1206J-E70TTAG3 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206J-E70TTAG4 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206A-E70TTAG3 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206D-E70TTAG1 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206D-E70TTAG2 ECM 2650*1150*1804 3686*1256*2068 Optional
    C225P6S
    CE250P6S    		 225 180 250 200 1206D-E70TTAG3 ECM 2650*1150*1804 3686*1256*2068 Optional
    C30P6S
    CE32P6S    		 30 24 32 26 1103A-33G Mechanical 1460*750*1300 2540*1040*1522 Optional
    C50P6S
    CE55P6S    		 50 40 55 44 1103A-33TG1 Mechanical 1810*800*1330 2820*1128*1460 Optional
    C67P6S
    CE75P6S    		 67 54 75 60 1103A-33TG2 Mechanical 1810*800*1330 2820*1128*1460 Optional
    C247P6S
    CE275P6S    		 247 198 275 220 1506A-E88TAG2 ECM 2741*1150*1804 4366*1306*2250 Optional
    C290P6S
    CE318P6S    		 290 232 318 255 1506A-E88TAG3 ECM 2741*1150*1804 4366*1306*2250 Optional
    C352P6S
    CE387P6S    		 352 282 387 310 1506A-E88TAG5 ECM 2741*1150*1804 4366*1306*2250 Optional
    C400P6S
    CE440P6S    		 400 320 440 352 2206A-E13TAG5 ECM 2950*1352*1990 4700*1700*2500 Optional
    C437P6S
    CE481P6S    		 437 350 481 385 2206A-E13TAG6 ECM 2950*1352*1990 4700*1700*2500 Optional
    C400P6S
    CE440P6S    		 400 320 440 352 2206C-E13TAG2 ECM 2950*1352*1990 4700*1700*2500 Optional
    C400P6S
    CE440P6S    		 400 320 440 352 2206C-E13TAG3 ECM 3000*1352*1990 4700*1700*2500 Optional
    C400P6S
    CE440P6S    		 400 320 440 352 2206D-E13TAG2 ECM 3000*1352*1990 4700*1700*2500 Optional
    C437P6S
    CE481P6S    		 437 350 481 385 2206D-E13TAG3 ECM 3000*1352*1990 4700*1700*2500 Optional
    C427P6S
    CE470P6S    		 427 342 470 376 2406J-E13TAG3 ECM 3230*1187*1988 4786*1356*2537 Optional
    C500P6S
    CE550P6S    		 500 400 550 440 2506C-E12TAG1 ECM 3230*1187*1988 4786*1356*2537 Optional
    C500P6S
    CE550P6S    		 500 400 550 440 2506C-E15TAG2 ECM 3460*1182*1987 5306*1566*2585 Optional
    C500P6S
    CE550P6S    		 500 400 550 440 2506D-E15TAG1 ECM 3460*1182*1987 5306*1566*2585 Optional
    C585P6S
    CE644P6S    		 585 468 644 515 2506C-E15TAG3 ECM 3460*1182*1987 5306*1566*2585 Optional
    CE687P6S / / 687 550 2506C-E15TAG4 ECM 3460*1182*1987 5306*1566*2585 Optional
    C568P6S
    CE625P6S    		 568 455 625 500 2806F-E18TAG1 ECM 3465*1548*1980 5800*1800*2550 -
    C556P6S
    CE612P6S    		 556 445 612 490 2806J-E18TAG1 ECM 3465*1548*1980 5800*1800*2550 -
    C625P6S
    CE687P6S    		 625 500 687 550 2806C-E18TAG1A ECM 3465*1548*1980 5800*1800*2550 -
    C625P6S
    CE687P6S    		 625 500 687 550 2806A-E18TAG2 ECM 3465*1548*1980 5800*1800*2550 -
    CE750P6S / / 750 600 2806C-E18TAG3 ECM 3465*1548*1980 5800*1800*2550 -
    C802P6S
    CE882P6S    		 802 642 882 706 2806A-E18TTAG4 ECM 3465*1548*1980 5800*1800*2550 -
    C802P6S
    CE882P6S    		 802 642 882 706 2806A-E18TTAG5 ECM 3465*1548*1980 5800*1800*2550 -
    C812P6S
    CE894P6S    		 812 650 894 715 2806C-E18TTAG6 ECM 3505*1548*1980 5800*1800*2550 -
    C850P6S
    CE937P6S    		 850 680 937 750 2806C-E18TTAG7 ECM 3505*1548*1980 5800*1800*2550 -
    C757P6S
    CE842P6S    		 757 606 832 666 4006-23TAG2A Electronic 4100*1800*2400 ISO 20'ft GP  -
    C850P6S
    CE937P6S    		 850 680 937 750 4006-23TAG3A Electronic 4100*1800*2400 ISO 20'ft GP  -
    C1000P6S
    CE1100P6S    		 1000 800 1100 880 4008TAG2 Electronic 4960*2200*2315 ISO 20'ft GP  -
    C1250P6S
    CE1375P6S    		 1250 1000 1375 1100 4012-46TWG2A Electronic 5000*2200*2600 ISO 40'ft HQ -
    C1500P6S
    CE1650P6S    		 1500 1200 1650 1320 4012-46TAG2A Electronic 5000*2200*2600 ISO 40'ft HQ -
    C1688P6S
    CE1856P6S    		 1688 1350 1856 1485 4012-46TAG3A Electronic 5000*2300*2700 ISO 40'ft HQ -

    Tags:

    heavy duty diesel generator Perkins diesel generator set prime diesel generator sets Silent Diesel Generator Sets silent type diesel gensets telecom diesel gensets solution

    next:

    Diesel Generator Sets with Perkins Engines

    Related Products

    We have developed a diverse portfolio of product solutions to suit different markets and needs.
